Syslog

The Syslog backend is ingest-only, and exports logs to a remote Syslog receiver using TCP or TLS. It adheres to RFC 5424 and uses octet-counting framing.

Behavior and Configuration​

Configuration​

The following values are required when creating a Syslog backend:

  • host: (string, required) The hostname or IP address of the syslog receiver.
  • port: (integer, required) The port of the syslog receiver (0-65535).

The following values are optional:

  • tls: (boolean) If true, connects via SSL/TLS. Defaults to false (TCP).
  • structured_data: (string) Static RFC 5424 Structured Data to include in every log frame (e.g., [exampleSDID@32473 iut="3" eventSource="Application"]).
  • cipher_key: (string) A base64-encoded 32-byte key. If provided, the log body is encrypted using AES-256-GCM.
  • ca_cert: (string) PEM encoded CA certificate for verifying the server. If not provided, the backend falls back to the system's default CA certificate bundle.
  • client_cert: (string) PEM encoded client certificate for mTLS.
  • client_key: (string) PEM encoded client private key for mTLS.
note

If client_cert is provided, client_key is also required.

Integration Example: Better Stack​

To integrate Logflare with Better Stack, follow these steps:

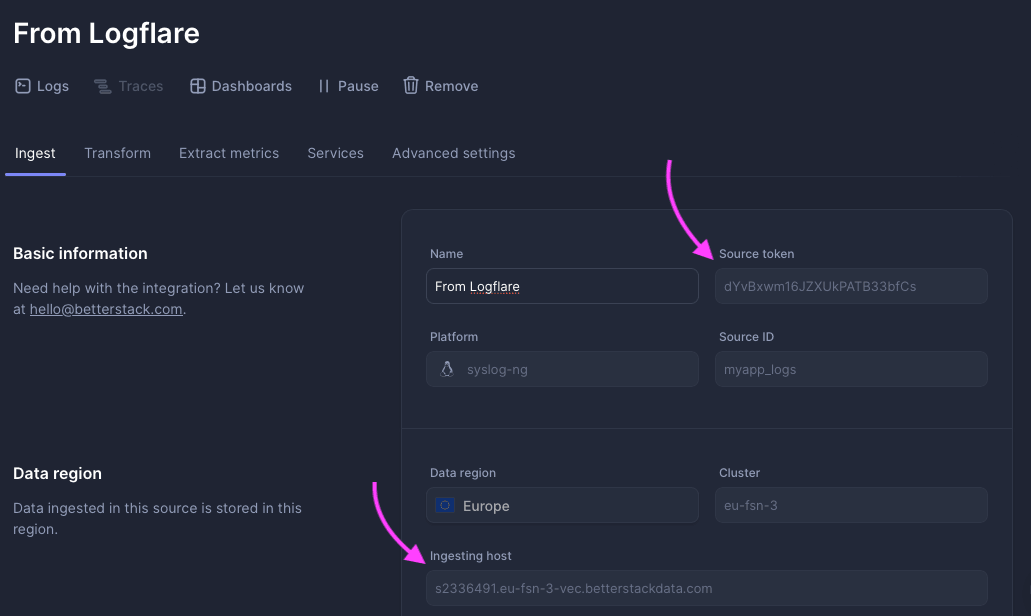

  1. In Better Stack, create a new Syslog source and note the provided source token and ingesting host.

    Create a new source on Better Stack

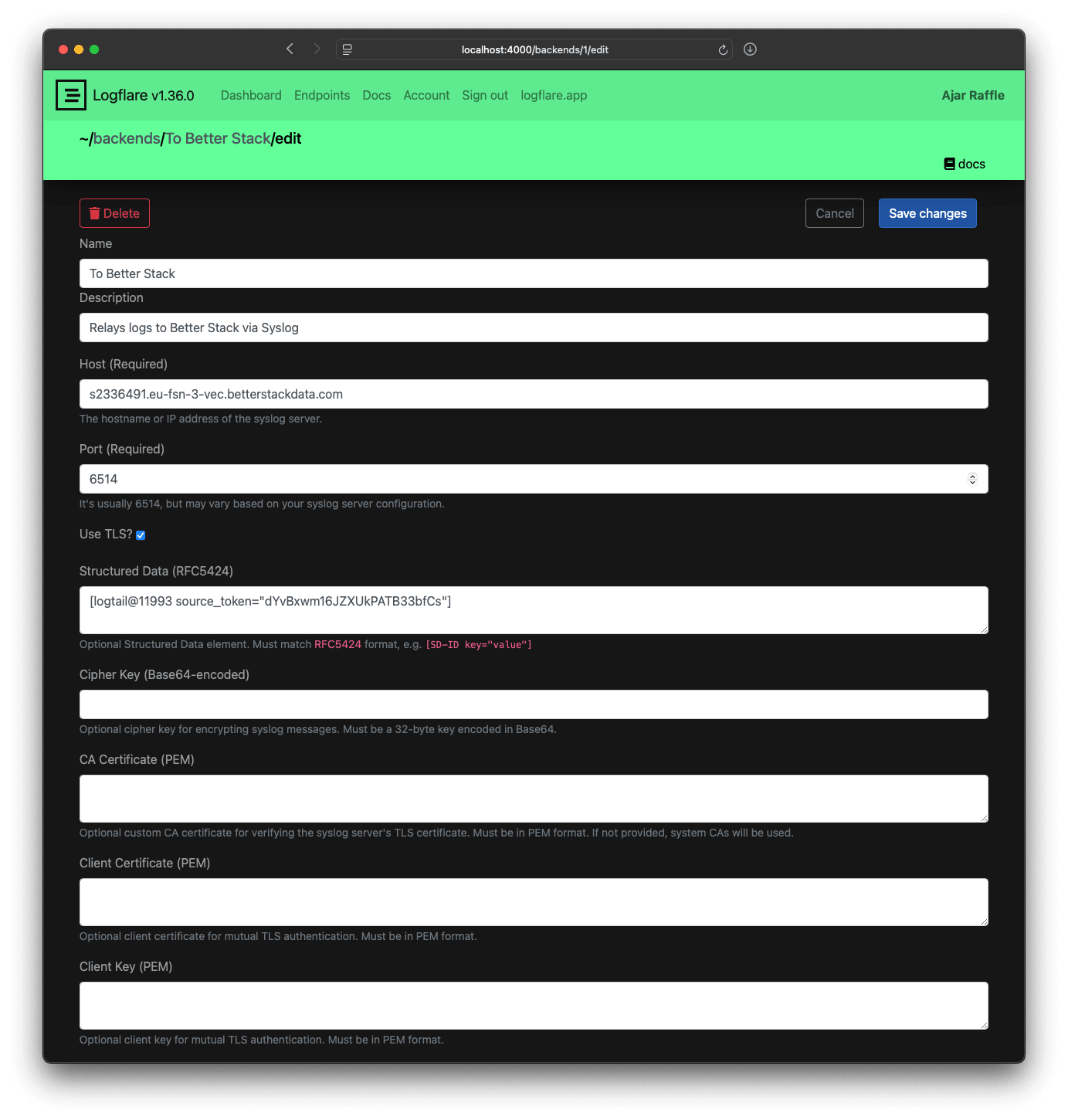

  2. In Logflare, create a new Syslog backend using the source token and host from Better Stack. Make sure to enable TLS and use port 6514.

    Create a new backend on Logflare

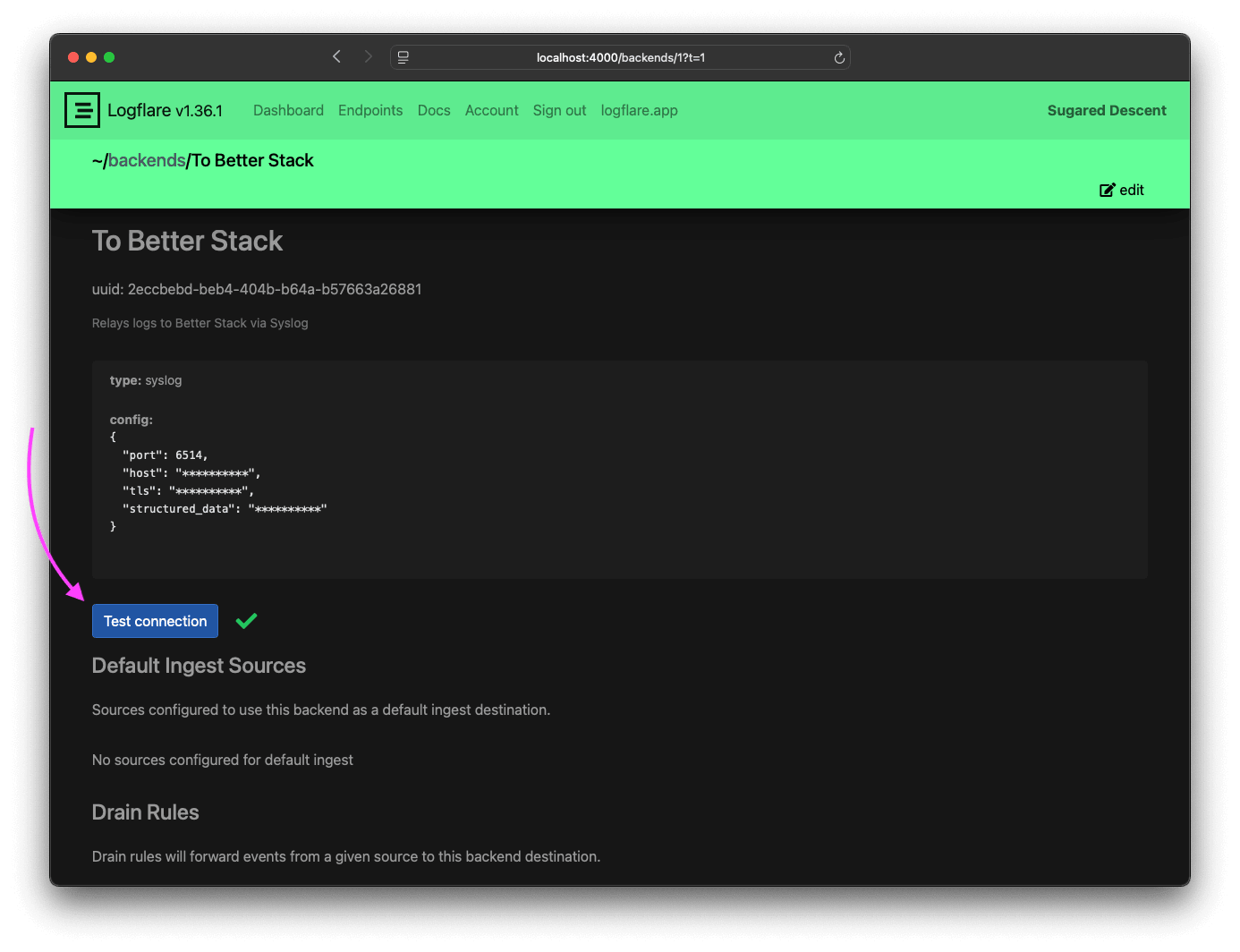

  3. Click Test connection on your Logflare backend page to verify connectivity to Better Stack.

    Test the connection on Logflare

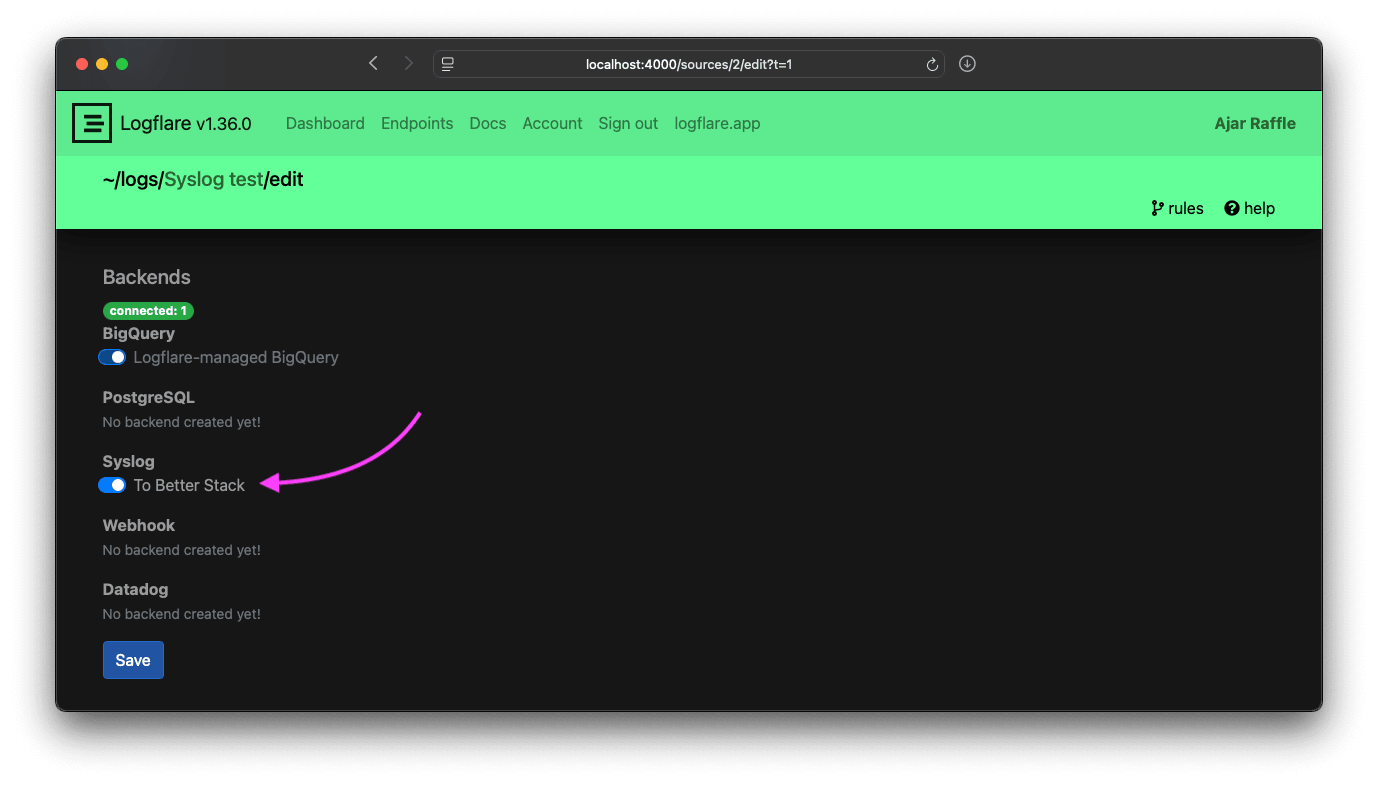

  4. Enable the backend for your source to start sending logs to Better Stack.

    Enable the backend

  5. Test the integration by sending some log messages to your Logflare source. You should see the logs appear in Better Stack within a few seconds.

    export LOGFLARE_DEMO_ENDPOINT="http://localhost:4000"
    export LOGFLARE_DEMO_SOURCE_ID="e3041ee1-8b85-4115-af7b-3c9ccc7f649c"
    export LOGFLARE_DEMO_API_KEY="my-other-cool-api-key-123"

    curl -X POST "$LOGFLARE_DEMO_ENDPOINT/logs/json?source=$LOGFLARE_DEMO_SOURCE_ID" \
         -H "content-type: application/json" \
         -H "x-api-key: $LOGFLARE_DEMO_API_KEY" \
         -d '"Hello from Logflare to Better Stack via Syslog!"'

    curl -X POST "$LOGFLARE_DEMO_ENDPOINT/logs/json?source=$LOGFLARE_DEMO_SOURCE_ID" \
         -H "content-type: application/json" \
         -H "x-api-key: $LOGFLARE_DEMO_API_KEY" \
         -d '{"more": "structure", "level": "info", "app": "my-app", "mood": "😀"}'

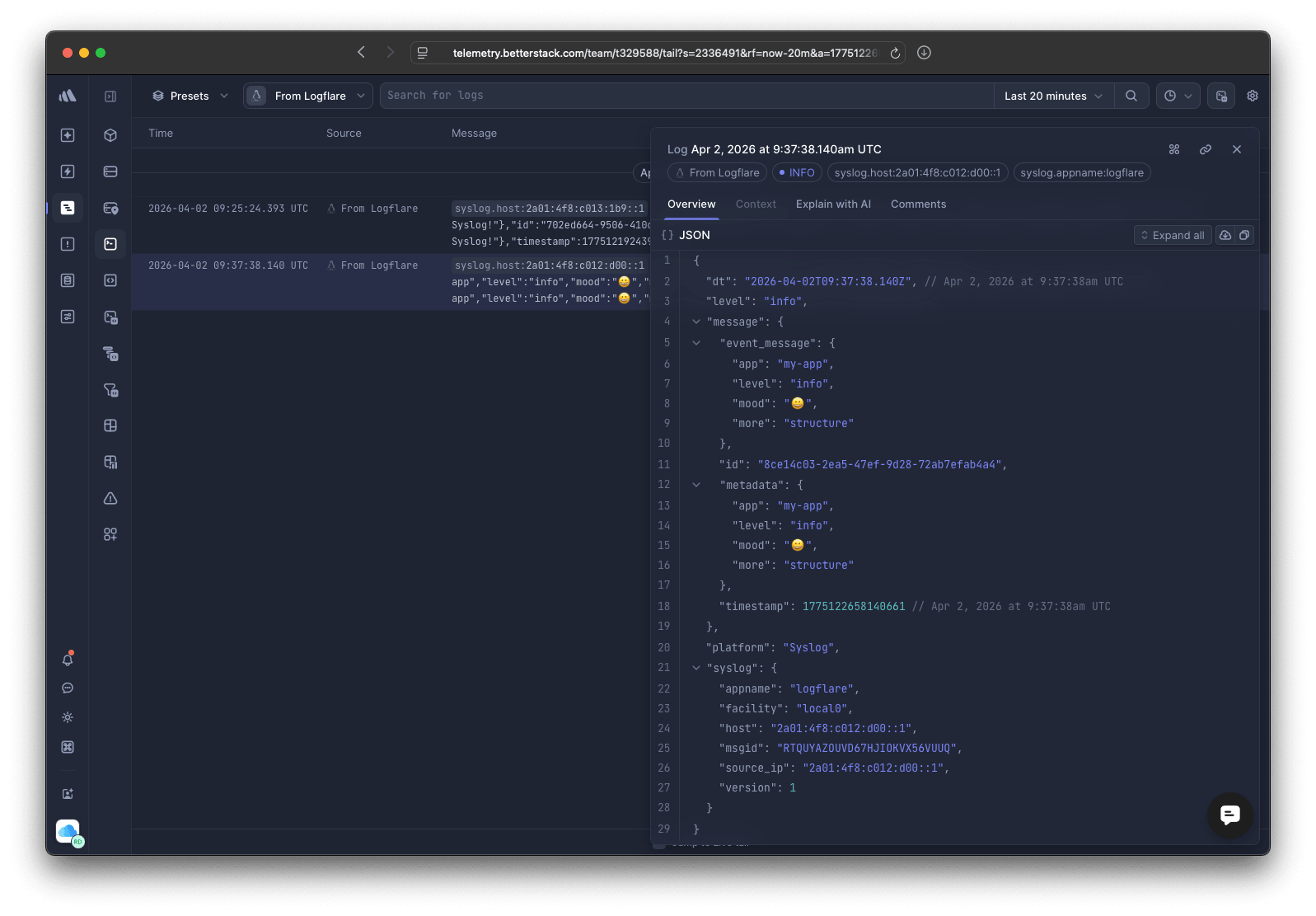

    Logs appearing in Better Stack
